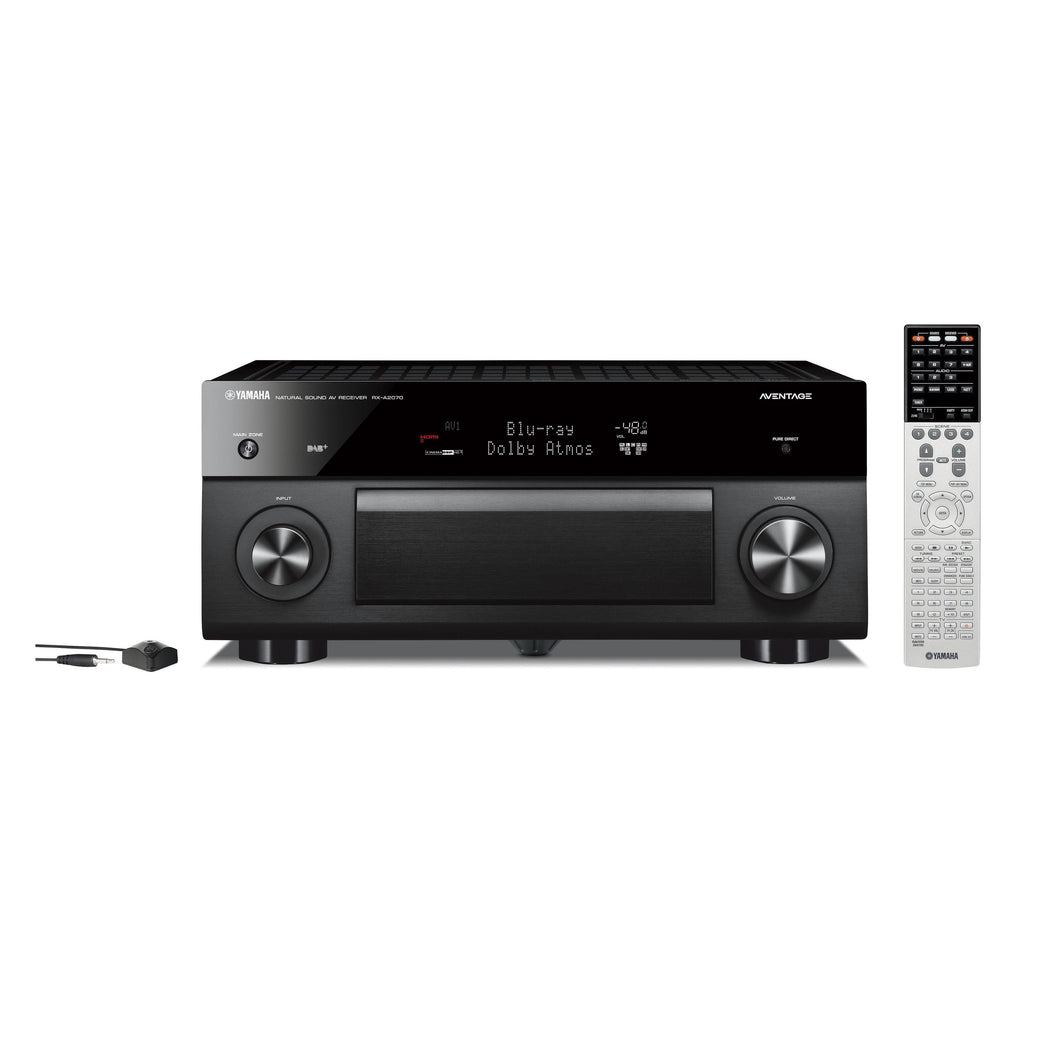

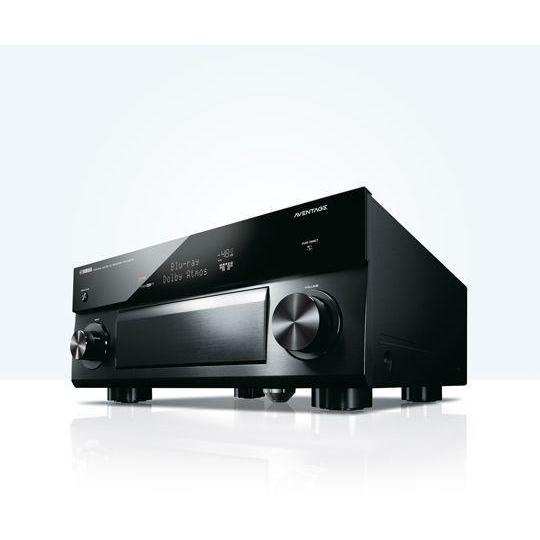

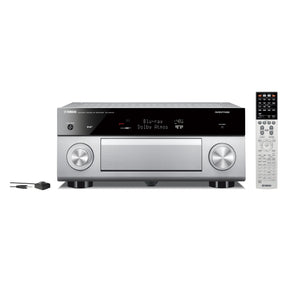

Yamaha RX-A2070 9.2 AV Receiver
Regular price
Rs. 1,699.00
Sale
Superior 9.2-channel AV receiver, only made possible by Yamaha’s advanced technology and expertise.
- Dolby Atmos® and DTS:X™ with CINEMA DSP HD3
- CINEMA DSP HD3 with Rear VPS (Virtual Presence Speaker)
- New CINEMA DSP Programme: Enhanced
- AVENTAGE AV receivers: Designed to deliver the highest levels of audio performance
- Aluminium front panel offers visual and aural benefits
- Anti Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
- Advanced design feet enhance strength and vibration resistance
- Symmetrical power amp layout, H-shape cross member frame and rigid chassis with additional bottom frames
- Professional quality digital audio by ESS DACs

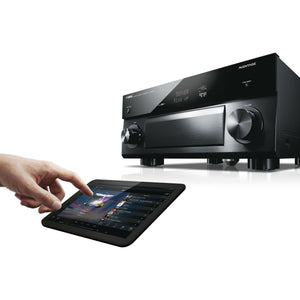

- MusicCast for audio enjoyment in every room
- 9-channel powerful surround sound
- --- 140 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
- --- 220 W per channel (8 ohms, 1 kHz, 10% THD, 1-ch driven)
- --- 220 W per channel (4 ohms, 1 kHz, 0.9% THD, 1-ch driven)
- Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
- Bluetooth® for wireless music streaming and Compressed Music Enhancer for Bluetooth
- AirPlay®, Spotify®*, Pandora®*, Napster®*, Tidal*, Deezer*, Qobuz*, JUKE* music streaming service
- *Music service availability varies by region.
- DAB / DAB+ tuner for enjoying high quality digital radio broadcasts
- DSD 2.8 MHz / 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
- High-resolution Music Enhancer further heightens musicality from the original content
- HDMI® (8 in / 2 out) with 4K Ultra HD full support, HDR Video including Dolby Vision and Hybrid Log-Gamma, and BT.2020
- YPAO™-R.S.C. sound optimisation with 3D, 64-bit precision EQ calculation, multi-point and angle measurement
- Zone Extra Bass for more powerful bass sound in another room (Zone 2 and 3)
- Yamaha video processing optimises video content
- Advanced HDMI® Zone Switching allows unprecedented AV switching to multiple zones
- Versatile Zone control such as Zone 2 / 3 / 4 on / off, Zone GUI and Party mode
Specs
Amplifier Section
Channel
Rated Output Power (1kHz, 1ch driven)
Rated Output Power (20Hz-20kHz, 2ch driven)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)
Dynamic Power per Channel (8/6/4/2 ohms)
Surround Sound Processing
CINEMA DSP
DSP Programs
Dialog Level Adjustment
Virtual Presence Speaker
Virtual Surround Back Speaker
Dialogue Lift
SILENT CINEMA / Virtual CINEMA DSP
Dolby Atmos
Dolby TrueHD
Dolby Digital Plus
Dolby Surround
DTS:X
DTS-HD Master Audio
Audio Features
Pure Direct
Compressed Music Enhancer
High-resolution Music Enhancer
YPAO multi-point measurement
YPAO Volume
Adaptive DRC (Dynamic Range Control)
Initial Volume & Maximum Volume Setting
A.R.T. Wedge
Bi-amp capability
Audio Delay
192kHz/24-bit DACs for all channels
Video Features
4K Ultra HD Pass-through and upscaling
HDMI 3D passthrough
HDMI Audio Return Channel
HDMI upscaling
Video adjustment
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync
Connectivity
HDMI Input/Output
HDMI CEC
USB Input
Network Port
Wi-Fi
AirPlay
Bluetooth
Front AV Input
Digital Audio Input/Output: Optical
Digital Audio Input/Output: Coaxial
Analog Audio Input/Output
Phono Input
Component Video Input/Output
Composite Video Input/Output
Preout
Headphone Output
Tuner Section
FM/AM Tuner
DAB Tuner
User Interface
On-screen display
SCENE
App Control
Web Browser Control
Remote Control Unit
Zone Control
Zone 2 Audio Output
Zone 3 Audio Output
Zone 4 Audio Output
Powered Zone
Zone Video Output
Zone HDMI
Zone B Output
Zone GUI
RS-232C Interface
+12V Trigger Output
Remote (IR) Input/Output
Party Mode
General
Standby Power Consumption (IR only)
Auto Power Standby
ECO mode
Dimensions (W x H x D)
Weight
RX-A2070 |
---|
RX-A2070 | ||
---|---|---|
AV Receiver | ||
Amplifier Section | Channel | 9.2 |
Rated Output Power (1kHz, 1ch driven) | 220 W (4 ohms, 0.9% THD) | |
Rated Output Power (20Hz-20kHz, 2ch driven) | 140 W (8 ohms, 0.06% THD) | |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 220 W (8 ohms, 10% THD) | |
Dynamic Power per Channel (8/6/4/2 ohms) | 165 / 210 / 285 / 405 W | |
Surround Sound Processing | CINEMA DSP | Yes (HD3) |
DSP Programs | 24 | |
Dialog Level Adjustment | Yes | |
Virtual Presence Speaker | Yes | |
Virtual Surround Back Speaker | Yes | |
Dialogue Lift | Yes (no presence speakers required) | |
SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) | |
Dolby Atmos | Yes | |
Dolby TrueHD | Yes | |
Dolby Digital Plus | Yes | |
Dolby Surround | Yes | |
DTS:X | Yes | |
DTS-HD Master Audio | Yes | |
Audio Features | Pure Direct | Yes (with video on mode) |
Compressed Music Enhancer | Yes | |
High-resolution Music Enhancer | Yes | |
YPAO multi-point measurement | Yes with R.S.C. (Reflected Sound Control), 3D, 64-bit Precision EQ Calculation and Angle Measurement | |
YPAO Volume | Yes | |
Adaptive DRC (Dynamic Range Control) | Yes | |
Initial Volume & Maximum Volume Setting | Yes | |
A.R.T. Wedge | Yes | |
Bi-amp capability | Yes | |
Audio Delay | Yes (0-500 ms) | |
192kHz/24-bit DACs for all channels | Yes (ESS) | |
Video Features | 4K Ultra HD Pass-through and upscaling | Yes (4K / 60p, 4:4:4) |
HDMI 3D passthrough | Yes | |
HDMI Audio Return Channel | Yes | |
HDMI upscaling | Yes (Analogue to HDMI® / HDMI to HDMI) | |
Video adjustment | Yes | |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes | |
Connectivity | HDMI Input/Output | 8 / 2 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible) |
HDMI CEC | Yes (SCENE, Device Control) | |
USB Input | USB Memory, Portable Audio Player | |
Network Port | Yes | |
Wi-Fi | Yes (with Wireless Direct) | |
AirPlay | Yes | |
Bluetooth | Yes (SBC / AAC) | |
Front AV Input | HDMI / USB / Analogue Audio | |
Digital Audio Input/Output: Optical | 3 / 0 | |
Digital Audio Input/Output: Coaxial | 3 / 0 | |
Analog Audio Input/Output | 9 (front 1) / 0 | |
Phono Input | Yes | |
Component Video Input/Output | 2 / 0 | |
Composite Video Input/Output | 4 / 0 | |
Preout | 7.2-ch | |
Headphone Output | 1 | |
Tuner Section | FM/AM Tuner | Yes (FM only) |
DAB Tuner | Yes | |
User Interface | On-screen display | Graphical User Interface |
SCENE | SCENE PLUS (12 sets) | |
App Control | Yes (iPhone / iPad / Android phone / tablet) | |
Web Browser Control | Yes | |
Remote Control Unit | Yes (Preset) | |
Zone Control | Zone 2 Audio Output | Preout / HDMI |
Zone 3 Audio Output | Preout | |
Zone 4 Audio Output | HDMI | |
Powered Zone | Zone 2 / 3 | |
Zone Video Output | HDMI / Component / Composite | |
Zone HDMI | Yes (Advanced HDMI Zone Switching) | |
Zone B Output | HDMI | |
Zone GUI | Yes | |
RS-232C Interface | Yes | |
+12V Trigger Output | 2 | |
Remote (IR) Input/Output | 1 / 1 | |
Party Mode | Yes | |
General | Standby Power Consumption (IR only) | ≤0.1W |
Auto Power Standby | Yes | |
ECO mode | Yes | |
Dimensions (W x H x D) | 435 x 192 x 474 mm (with antenna up: 435 x 247 x 474 mm); 17-1/8” x 7-1/2” x 18-5/8” (with antenna up: 17-1/8” x 9-3/4” x 18-5/8”) | |
Weight | 17 kg; 37.5 lbs. |
